附加 Dbspace Chunk 的结构

可以创建包含多于一个 chunk 的 dbspace 。Dbspace 中的初始 chunk 包含了数据库空间的表空间 tblspace 。附加 chunk 则不包含。当附加 chunk 第一次创建时,包含以下结构:

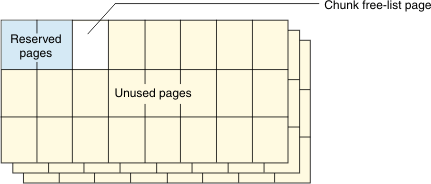

图 1 说明了 Dbspace 中所有附加 chunk 的结构。(该结构也适用于 root dbspace 的附加 chunk 。)

图: 附加 Dbspace Chunk


begin figure description - The paragraph that precedes this figure describes the content of the figure. - end figure description
