镜像 Chunk 的结构

每个镜像 chunk 的大小必须与其主 chunk 相同。创建镜像 chunk 时,数据库服务器立即将主 chunk 的内容写入镜像 chunk 中。

镜像 chunk 包含于主 chunk 相同的控制结构。在数据库服务器将 blobspace 、sbspace 或 dbspace chunk 的镜像联机后,它们包含与其主对象相同的物理内容。

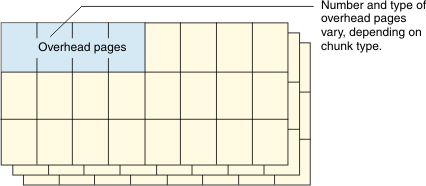

图 1 说明了 chunk 创建之后所显示的镜像 chunk 结构。

图: 镜像 Chunk 结构


begin figure description - The paragraph that precedes this figure describes the content of the figure. - end figure description

由于镜像 chunk 的所有空间都保留用于镜像,所以镜像 chunk 结构总是显示没有可用空间。有关更多信息,请参阅 GBase 8s 管理员指南 中的 什么是镜像 一章。
