对系统目录表的跟踪

数据库服务器跟踪在数据库 tblspace (驻留在 root dbspace 中)中新创建的数据库,描述该数据库的条目添加到 root dbspace 中的 数据库 tblspace 中。(请参阅 Database Tblspace 的结构。)对于每个系统目录表,数据库服务器向构建数据库的 dbspace 中的 tblspace tblspace 添加一个一页的条目。(请参阅Tblspace Tblspace 的结构。) 图 1 图说明了数据库 tblspace 条目和该数据库的 systables 系统目录表的位置之间的关系。

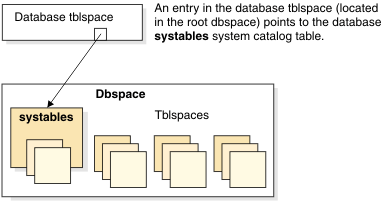

图: 新数据库


begin figure description - The figure shows an arrow pointing from an entry in the database tblspace (located in the root dbspace) to the database systables system catalog table. The systables system catalog table is located in the Dbspace, which also houses tblspaces - end figure description

有关如何在创建数据库之后如何列出它们的指示信息,请参阅 GBase 8s 管理员指南 中的管理数据库日志状态一章中的监视数据库。
